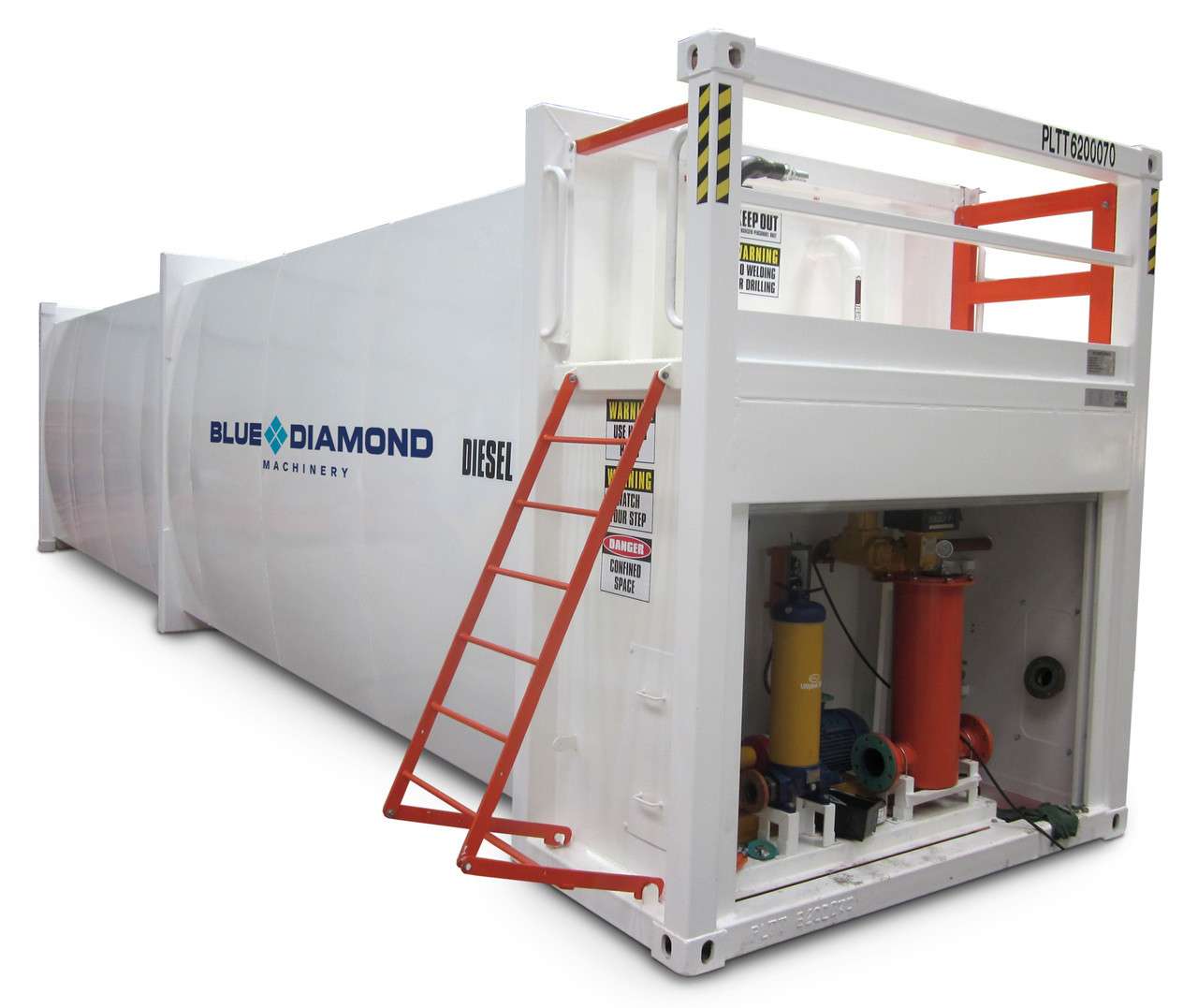

Fuel Tank Liquitainer (LT65) 65,000L Self Bunded Baffled

Blue Diamond

#LT65

08 9353 4436

12V Pump Kit - 45 LPM ($1,490):

Pump kit includes 4m hose, automatic gun. Price Includes Installation. # 220004

24V Pump Kit - 75 LPM ($1,490):

Pump kit includes 4m hose, automatic gun. Price Includes Installation. # 220018

240V Piusi AC Pump - 90 LPM - Cube 90/44 ($2,628):

Kit consists: Pump, K44 Meter, 4m delivery hose, A120 Auto Nozzle. Part # 50090

12V DC Piusi Pump 50LPM ($1,990):

Kit consists: Pump, Auto Nozzle, telescopic suction tube, 4m delivery hose, K33 Meter. price Includes Installation. # Pump1720

24V DC Piusi Pump 50LPM ($2,490):

Kit consists: Pump, Auto Nozzle, telescopic suction tube, 4m delivery hose, K33 Meter. price Includes Installation. # Pump1720

Details

65,000 Litre LIQUITAINER Self Bunded Fuel Tanks- Diesel, Petrol, Lubricants.

Blue Diamond’s range of Self Bunded tanks, fully baffled are designed and approved for site storage and transport of diesel, petrol, lubricants and waste oil. Meeting the needs of multiple applications in industry, construction, agriculture and mining.

Key Features

LIQUITAINER - BDM 65,000L Self Bunded Baffled Safe Fill Level 62,300L
Container Footprint: 40FT HIGH CUBE
Unique Rounded Rectangular Profile
Full Under Tank Visibility
Quality Build and Finish
CSC Plated as a standard shipping container
SELF BUNDED TANK (DOUBLE WALL) - Self Bunded Tank (Double Wall) Unique Rounded Rectangular Design
CONTAINER FOOTPRINT - Manufactured to standard 10ft, 20ft, 40ft and 48ft container footprint.
CSC PLATED - CSC Plated as a Standard Shipping Container. Can be transported via Sea / Rail or Road.
SELF BUNDED TANK PROFILE - Rounded Rectangular tank profile maximises storage footprint whilst maintaining full under self bunded tank visibility for long term tank fuel / oil storage applications
APPROVALS - Designed and approved to UL142, ULC-S601, BS799, AS1940, AS1692, AS1657
INTEGRATED VALVING - PETRO designed and manufactured 80mm (3") Anti Syphon Valve and Overfill Protection Valve
OVERFILL ALARM - Battery Operated (12V) Overfill Alarm
FILL INLET - Supplied with 80mm (3") Fill Line including Sch 40 Pipe, ANSI 150# Flanges, Camlock Male Fitting with Dust Cap, Fire Safe Ball Valve for isolation and Wafer Style Non Return Valve.
SUCTION OUTLET - supplied with 80mm (3") Suction Line including Sch 40 Pipe, ANSI 150# Flanges terminating with a Fire Safe Ball Valve.
BUNDED PUMP BAY HOUSING - Choice of Integrated or Clip On Bunded (Contained) Pump Bay Housing featuring removable side panels to allow for simple multiple tank connection for tank farm applications.
LADDER + PLATFORM - Integrated Ladder / Platform designed to AS1657. Platform designed to allow for ladder connection to either side of the tank providing flexibility for site positioning and operation. Infill pieces can be added in multiple tank farm applications to provide for a complete walk through platform system linking all tanks together. Side staircase modules are available to be simply attached at each end of the tank farm to complete the tank top access system.
MANWAY - 600mm Manway with Integrated Ladder down into the tank module (2 x manways provided on all tanks larger than 12 000L) to assist with degassing for future tank maintenance
PAINT SPECIFICATION - Paint Colour RAL9003 Signal White/ Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry fi lm thickness no less than 180 um
OPTIONAL BAFFLES - Option for baffling in order to allow the tank to be moved with liquid.
LIQUIDS COMPATIBILITY - Suitable for the storage and dispensing of diesel, lubricants, gasoline (petrol) and waste oil.
MULTIPLE COMPARTMENT - multiple compartment tanks are available in all footprints to allow the storage of multiple grades / types of liquids such as various grades of lubricants or different fuels
Bunded tank capacity 110% of internal tank volume
Easily removable carbon steel inner tank for maintenance and cleaning
Suitable for Petrol, Diesel, Lubricants and Waste Oil
Length (mm) - 12,192 Width (mm) - 2,438 Height (mm) - 2,896
Weight (kg) - 14,500
Optional Extra's;
Pumps / connections / hoses / meters / filters housed in bund, which can be locked even when in use!

Delivery

We can ship via weight just enter your postcode when your checking out
Alternatively you can specify your own freight company. Or collect direct from our warehouse.
Pick up from our Perth or Melbourne Office

CONTACT US

It’s important to ensure you select the right poly diesel fuel tank. If you have any questions, please call 1300 936 025 to discuss your requirements.
