Fuel Tank Cube 2220L Self Bunded Baffled

Blue Diamond
#220011
$6,200 $7,900

30 days non ecommerce product

30 days moneyback guarantee.
100% Australian Owned & Operated

Pin It

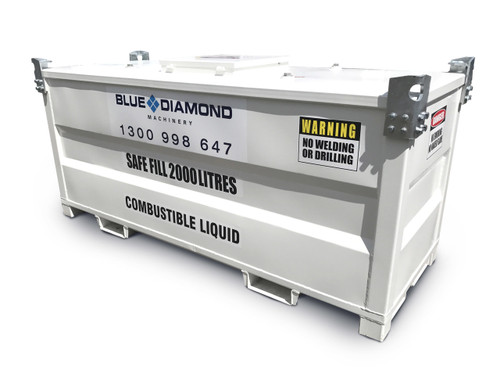

FUEL TANK 2,220 CUBE SELF BUNDED BAFFLED

Blue Diamond’s range of Self Bunded tanks, fully baffled are designed and approved for site storage and transport of diesel, petrol, lubricants and waste oil. Meeting the needs of multiple applications in industry, construction, agriculture and mining.

Tank features rounded corners designed to eliminate stress points for improved quality and greater longevity. Also designed for visibility across all external surfaces of the tank

View the Spec Sheet (.pdf)

KEY FEATURES

  • CUBE - BDM 2,220L Self Bunded Tank Baffled Safe Fill Level 2000L
  • Designed and approved for site storage and transport of diesel, petrol, lubricants and waste oil
  • Mild Steel Internal Tank and Wetted Parts - Heavy duty mild steel External tank
  • Stackable - 3-high empty / 2-high when full
  • UN Approved for transport of dangerous goods and / or static storage / AS1940 / AS1692  approved as self bunded tank for static storage
  • Bunded tank capacity 110% of internal tank volume. Self Bunded double wall design
  • Fluid level dipsticks for tank and interstitial space
  • UL complaint emergency relief vents on the main tank and interstitial space
  • Vent stack with screened rainproof outlet
  • 1 x 2inch fill port with camlock male tanker hose filter c/w dust cap connection
  • 1x 2inch fill port with filter
  • 3x 1.5inch suction port
  • 2x 1.5inch suction port
  • 2x 2inch suction port
  • 2x 1.5inch return port
  • 1 x Air breather vents and fittings supplied complete with dust filter fitting
  • 2 x anodized dipstick, one for fuel dip, one for interstitial dip
  • 1 x set of statutory signage
  • Suction foot valve, overfill protection and electronic overfill alarm.
  • Fill point with fire safe safe ball valve, non return valve and camlock with dust cap connection
  • Warranty - 5 Years Structural, 1 year on valves (conditions apply)
  • Easily removable carbon steel inner tank for maintenance and cleaning
  • Suitable for Petrol, Diesel, Lubricants and Waste Oil
  • Vent Pipe: Standard
  • Galvanised lifting lugs
  • Fluid Level Dipstick: standard
  • Dimentiosn - 271cm x 102cm x 124cm
  • Weight - 1010Kg

Optional Extra's;

  • Pumps / connections / hoses / meters / filters housed in bund, which can be locked even when in use!
