10 KVA Diesel Generator 240V & Trailer Package

Blue Diamond

#G300026

$11,900

2 Year Extended Warranty ($500):

1 Year Warranty is standard, this option gives 2 years and 500 Hours.

3 Year Extended Warranty ($1000):

1 Year Warranty is standard, this option gives 3 years and 1500 Hours.

500 Hour Service Kit ($140):

This 500 hour service kits includes 1 each of the following; Air, Fuel & Oil Filter

1000 Hour Service Kit ($220):

This 1000 hour service kit includes 2 of the following; Air, Oil & Fuel Filters

ATS - Mains Failure Box ($1,600):

Automatic Transfer Switch - Your generator will start and stop when the main power goes out.

ATS Lead ($40):

Lead from 2 wire from Generator

Video

Product Videos

9KVA Diesel Generator- Super Silent
(03:32)

Details

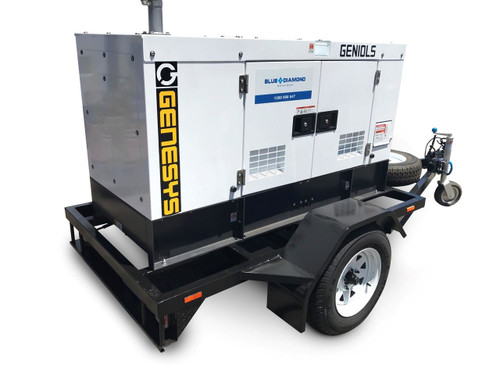

10 KVA Diesel Generator- Single Phase- 240V & Trailer Package

This package includes Diesel Generator installed onto trailer, licensed for 6 months and all ready to go@

Blue Diamond 10 KVA diesel generator is one of the most cost-effective, efficient and robust units you can buy for your power needs. Fully enclosed sets with very compact design, water cooled- so will run in hot conditions, Super Quiet-fully enclosed sound proof canopy, remote start and an automatic transfer switch plug.

This 10 KVA diesel generator particularly suited for larger loads found in industrial, commercial, construction and can also be used as backup for offices or homes. Providing either prime power or standby/back-up power sources and an estimated run time of 36 hours at 75% load.

Blue Diamond’s range of large Diesel Generators provide reliable power at great prices and are backed by a generous 2 year – 1000 hour warranty for your piece of mind.

Diesel Generator Key Features

Prime kVa: 9
Model GEN10LS
Standby kVa: 10
Prime kW: 9
Standby kW: 10
Power Factor: 1
Easy to use Comp-AP Controller with Remote Start & ATS Plug
Amps: 37A
Voltage: 240 V
Alternator: BRUSH LESS WITH AVR
Number of phase: 1
Make and model: LAIDONG
Number of cylinder: 3
Type: VERTICAL INLINE 3
Speed: 1500 RPM
Fuel tank: 60 Ltrs
Fuel consumption: 3 L/H (100% LOAD)
Estimated run time: 12 HOURS (75% LOAD)
Bunded fuel tank: YES
Emergency stop YES
Australian standards: YES
Noise level: 64 DbA @ 7M
Outlets: 3 X 15 AMP (240V
Recommended oil; 15W40
Dimensions: 149cm x 70cm x 95cm
Weight: 620kg

Trailer Key Features

2100mm x 1200mm Chassis Trailer
50mm Tow Hitch with Handbrake
5 Leaf Slipper Springs 1.25 Ton, 60mm wide
45mm square axle with slimline bearings
Mudguards sheeted in no higher than 230mm, rear lip channel to house lights
New Rims and New 185x14'' LT Tyres x 3
New Spare Wheel + Bracket
Heavy Duty Swivel Jockey Wheel
LED Lights
Licensed for 1250kg Aggregate
Painted in Black
We can customize trailer to anything as require (plus costs).

Warranty

Gain peace of mind knowing your large Diesel Generator is backed by our Generous 2 year – 1000 hour warranty. We offer 24/7 Australia wide support on all our diesel generator models, with service agents throughout Perth, Melbourne, Brisbane, Adelaide, Sydney.

Delivery

We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Perth or Melbourne

It's important to ensure you select the right generator for your needs. So if you have any questions or need some help please do not hesitate to call us on 1300 998 647
