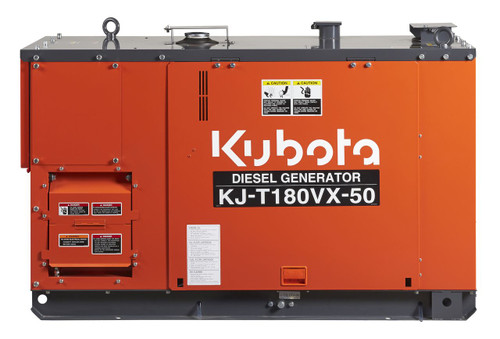

Kubota Generator - 18KVA 3 Phase- KJT180VX

KUBOTA
#170005
$14,124
Quantity:

30 days non ecommerce product

30 days moneyback guarantee.
100% Australian Owned & Operated

Pin It

Kubota KJ Series Diesel Generators.

The Kubota KJ Series features heavy-duty four pole generators best suited to industrial applications. Built with world renowned Kubota diesel engines, the KJ series is in a class of its own, offering a quieter, more efficient and safer operation.

Kubota KJ-T180VX Generator Key Features

The Kubota KJ-T180VX is a four pole, fully cabinet style, three phase diesel generator, with a capacity of 18kVA and 1500RPM

  • Single sided access for quick inspection and easy maintenance.
  • Sound attenuated enclosure effectively reduces all sound, including the muffler.
  • Kubota’s orginal TVCS combustion system substantially reduces sound levels.
  • Twin-point lifting eyes makes transportation easy.
  • Optional remote start kit available.

Generator Specifications

  • Rated Output: (PRIME): 18KVA
  • Model: V2203
  • Voltage: 415 V
  • Amps: 25
  • Power factor: 1
  • Class of rating: CONTINUOUS
  • Alternator: BRUSHLESS (WITH AVR)
  • No of phase: 3-PHASE
  • Make and model: KUBOTA KJ-T180VX
  • Type: Vertical, Water Cooled
  • Total displacement: 2.197
  • Rated output: 16.9 KW
  • Speed: 1500 RPM
  • Fuel tank capacity: 37.0 L
  • Fuel consumption 75% Load: 4.6 L/H
  • Continuous 75% Load:8 H
  • Overall length: 1488MM
  • Overall Width: 650MM
  • Overall height: 971MM
  • Dry weight: 505KG
  • Sound levels @ 7M: 75 dB
  • Recommended oil; 15W40

Options

The following options can be added to the Kubota range of generators by Blue Diamond.

  • Mine Spec: Heavy Duty Bunded Skid $1000 - $2500 (24H capacity can be added)
  • Mine Spec: Battery Isolator $300
  • Mine Spec: Fire Extinguisher $200
  • Mine Spec: Protective Frame: $1200
  • Mine Spec: Water Proof RCD Protection $300
  • Premium NS70 Battery $212

Warranty

  • Covered by a 2 Year Nationwide Warranty. We have full time mechanics providing support and we carry all spare parts.

Delivery

  • We can ship via weight just enter your postcode when your checking out- Australia Wide. Alternatively you can specify your own freight company
  • Or Pick up from our Perth Office

Contact Us

It's important to ensure you select the right generator for your needs. So if you have any questions or need some help please do not hesitate to call us on 1300 998 647
