Portable Compressor 47HP 190CFM - ROTAIR MDVN 54Y

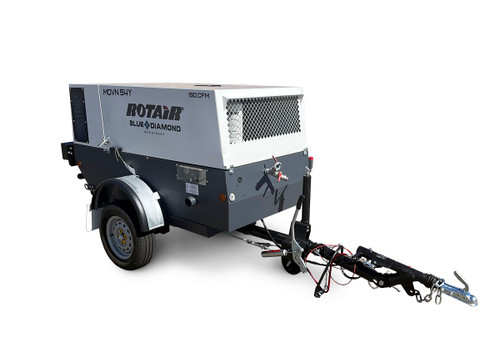

ROTAIR MDVN 54Y - 190CFM  Portable Air Compressor- on Trailer.

The new modern and streamlined look of ROTAIR portable compressors with compact dimensions for handling ease, whilst at the same offering high performance levels. Build tough and reliable for the demanding Australian conditions. 50c ambient for extreme operating conditions. This is New in our fleet and is perfect for Agriculture and Construction.

For Mine Sites we recommend the MDV53K.

Blue Diamond Machinery are an exclusive ROTAIR distributer in Australia.

View the Spec Sheet (.pdf)

Rotair Air Compressor Specifications

• Free Air Delivery (Lt/min)- 35200
• Free Air Delivery (CFM)- 190
• Operating Pressure (bar)- 7
• Operating Pressure (psi)-102
• Transmission Motor-Screw Unit- Direct Drive
• Engine Make- Yanmar - 4TNV 88-DSAP
• Aspiration- Natural
• Cooling System- Water
• No. Engine Cylinders- 4
• Fuel Tank Capacity: 50L
• Max Engine (RPM)- 3,000
• Min Engine (RPM)- 1,500
• Length (with draw bar)- 3264mm
• Width- 1528
• Weight (without brakes)- 900kg

Rotair Compressor Key Features

• Easy Maintenance- Clean and easy layout for quick and efficient maintenance and control
• Made in Europe- Engineered and manufactured in Europe using top quality materials. Direct coupled, no gearbox.

Warranty

5 Year unlimited Hour Air-End/Drive Coupling Warranty. Diesel Engine 2 year/1000hrs.

Delivery

We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Perth or Melbourne.

Contact Us

It's important to ensure you select the right air compressor for your needs. So if you have any questions or need some help please do not hesitate to call us on 1300 998 647

Compressor Servicing

Blue Diamond Machinery also provides comprehensive range of air compressor servicing, preventative maintenance and compressor repair services across Perth, WA. With over 25 years of experience servicing all types of compressors our service team ensure minimum downtime, quality and reliability on all compressor service and repair work.
