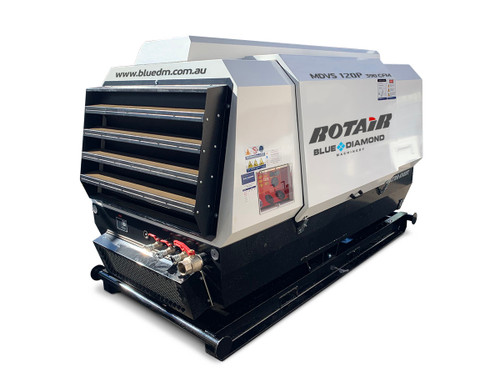

Portable Compressor 131HP 400CFM - ROTAIR MDVS 120 P10 - Skid Mounted

ROTAIR MDVS 120 P Portable Diesel Air Compressor

The new modern and streamlined look of ROTAIR portable compressors with compact dimensions for handling ease, whilst at the same offering high performance levels. Build tough and reliable for the demanding Australian conditions. 50c ambient for extreme operating conditions. Machines can be ordered on Skid Mount or on Trailer.

Blue Diamond Machinery are an exclusive ROTAIR distributor in Australia.

•  “Intelligent System”- enables a pre-heating of the engine without overloading it, the air end will start working only when the perfect conditions are reached.
• Fuel Saving System- when the compressed air is not required, the system allows to compress air at a much lower thus saving fuel consumption significantly. Up to 20% in fuel saving!
• Easy Maintenance- Clean and easy layout for quick and efficient maintenance and control
• Control Board- complete and fully functional using a “NO KEY” system. So that no keys are needed for internal access to the unit and for its ignition.
• Made in Europe- Engineered and manufactured in Europe using top quality materials. Direct coupled, no gearbox

Please download ROTAIR Product PDF for more information.

Rotair Compressor Specifications

• Comes Standard with Built in After Cooler
• Free Air Delivery (Lt/min)- 11,000
• Free Air Delivery (CFM)- 400
• Operating Pressure (bar)- 10
• Operating Pressure (psi)-145
• Transmission Motor-Screw Unit- Direct Drive
• Engine Make- PERKINS - 1104D-E44TA
• Cooling System- Water
• Engine Power (Kw)- 97
• Engine Power (HP)- 131
• Max Engine (RPM)- 2,200
• Min Engine (RPM)- 1,600
• Length (with drawbar)- 4,534mm
• Length (without drawbar)- 2,800mm
• Width- 1,980mm
• Height- 2,137mm
• Weight (wet)- 1,920KG

Compressor data

• We can customise from manufacture! Increase the operating pressure, but will reduce the CFM.

Optional Extra's

• Skid Mounted
• Skid Mounted with After cooler
• Trailer Mounted
• Trailer Mounted with After cooler

Warranty

5 Year unlimited Hour Air-End/Drive Coupling Warranty. Diesel Engine 2 year/1000hrs.

Delivery

We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Perth or Melbourne.

Compressor Servicing

Blue Diamond Machinery also provides comprehensive range of air compressor servicing, preventative maintenance and compressor repair services across Perth, WA. With over 25 years of experience servicing all types of compressors our service team ensure minimum downtime, quality and reliability on all compressor service and repair work.

Contact Us

It's important to ensure you select the right air compressor for your needs. So if you have any questions or need some help please do not hesitate to call us on 1300 998 647
