Kubota Generator Lowboy - Mine Spec

1300 998 647

(No reviews yet) Write a Review

SKU: 160007A

SKU:
160007A
  • Express Shipping
  • Price Beat Guaranteed
  • 100% Australian Owned & Run

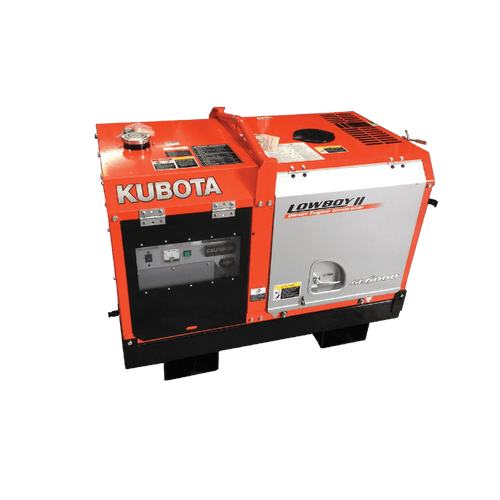

6KVA Kubota Lowboy Diesel Generator - Mine Spec

View the Spec Sheet (.pdf)

Kubota Generator Key Features

The Kubota GL6000 is a two pole, silent type, direct coupled, single phase diesel engine with a capacity of 6kVA at 3000RPM.

  • Compact design thanks to direct coupling of the engine crankshaft with the cooling fan.
  • Quieter operation with built-in muffler, longer air-cleaner hose and improved inlet vent design.
  • Large capacity fuel tank (28L) enables longer continuous operation on a single tank.
  • Single sided access for quick inspection and easy maintenance.
  • One-point lifting eye makes transportation easy. Forklift pockets are provided in base of generator.
  • Safety is paramount with double circuit protectors, protective cover and automatic shutdown system.

Generator Specifications

  • Rated output: 5.5 KVA
  • Model: GL6000 SERIES 2
  • Voltage: 240 V
  • Power factor: 1
  • Class of rating: CONTINUOUS
  • Alternator: BRUSHLESS (WITH AVR)
  • No of phase: 1-PHASE
  • Make and model: KUBOTA Z482-EB, Water Cooled.
  • Type: SWIRL CHAMBER
  • Total displacement: 0.479 L
  • Rated output: 6.9 KW
  • Speed: 3000 RPM
  • Fuel tank capacity: 28 L
  • Overall length: 1070MM
  • Overall width: 607MM
  • Overall height: 696MM
  • Dry weight: 235KG
  • Sound level @ 7M: 66.5 dB

Options

Pricing on Web for the Low Boy does not include the following options:

  • Mine Spec: Heavy Duty Bunded Skid $1000 - $2500 (24H capacity can be added)
  • Mine Spec: Battery Isolator $400
  • Mine Spec: Fire Extinguisher $400
  • Mine Spec: Protective Frame: $1200
  • Mine Spec: Water Proof RCD Protection $300
  • Mine Spec: Emergency Stop
  • Mine Spec: RCD Protection with IP66 15AMP Outlets
  • Mine Spec: Cover Over Ignition Switch
  • Mine Spec: Lockable Battery Slolator

Warranty

Covered by national warranty, and cover everything for 2 years or 1000 hours. We have service agents Australia wide including Perth, Melbourne, Brisbane, Adelaide, Sydney.

Delivery

We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Perth or Melbourne.

Contact Us

It's important to ensure you select the right Kubota diesel generator for your needs. So if you have any questions or need some help please do not hesitate to call us on 1300 998 647

Generator Servicing

Blue Diamond Machinery provides comprehensive range of generator servicing, preventative maintenance and generator repair services across Perth, WA. With over 25 years of experience servicing all types of generators our service team ensure minimum downtime, quality and reliability on all generator service and repair work.
