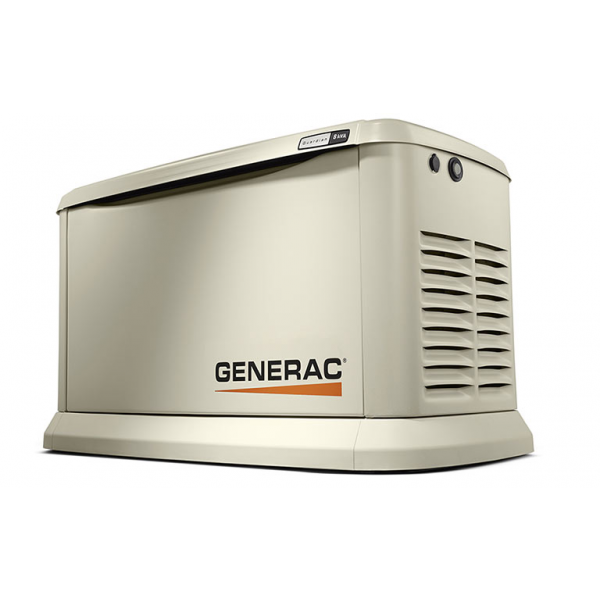

Generac 20kva Gas Standby Generator Air Cooled – Three Phase
These are the Newest version of the Generac Generators - Type A!
Cost of the Generator is a bit more, but you save thousands on installing the Generator and finding plumbers will be a lot easier.
The Generac home generator range are a cost-effective, efficient and reliable solution to all your home or small business backup needs. Generac home generators offer peace of mind knowing they will back up your entire home, or most essential items, in the case of a power outage or electrical emergency.
This 20 KVA Generac Single Phase generator is purpose built and designed to handle the rigors of extended run times in high temperature and extreme operating conditions. Providing standby, home back-up or temporary power when you need it.
- KVA: 20
- Rated Maximum Continuous Power Capacity (LP): 20,000 VA*
- Rated Maximum Continuous Power Capacity (NG): 17,000 VA*
- Rated Voltage: 380 / 400 / 416
- Rated Maximum Continuous Load Current 220 Volts (LP/NG): 30.4 / 25.8
- Main Line Circuit Breaker: 32 amp
- Number of phase:3
- Number of Rotor Poles: 2
- Rated AC Frequency: 50Hz
- Power Factor: 0.8
- Battery Requirements (Not Included): 12 volts, Group 26R 540 CCA Minimum or Group 35AGM 650 CCA Minimum
- Engine: GENERAC GENERAC G-Force 1000 Series
- Number of Cylinders: 2
- Displacement: 999cc
- Cylinder Block: Aluminium w/ Cast Iron Sleeve
- Valve Arrangement: Overhead Valve
- Ignition System: Solid-state w/ Magento
- Governor System: Electronic
- Compression Ratio: 9.5:1
- Starter: 12 VDC
- Oil Capacity Including Filter: 1.9 qt/1.8 L
- Operating rpm: 3,000
- Fuel Consumption NG, metres cubed/hr: Full Load 6.48 - Half Load 4.30
- Fuel Consumption LPG, litres/hr: Full Load 11.11 – Half Load 7.16
Dimensions & Weight
- Unit Weight (lb/kg): 486 / 220
- Dimensions (L x W x H): 122mm x 635mm x 737mm
- Sound Output in dB (A) at 23ft (7m) with generator operating at normal load: 65
- Sound Output in dB (A) at 23ft (7m) with generator exercising five minutes at low speed: 59
Covered by Generac 5-year limited warranty.
We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Melbourne or Perth.
It's important to ensure you select the right home generator for your needs. So, if you have any questions or need some help please do not hesitate to call us on 1300 998 647
