220 KVA Diesel Generator 3 Phase 415V - Cummins Powered


30 days non ecommerce product

30 days moneyback guarantee.
100% Australian Owned & Operated

Pin It
  • Cummins Diesel...
    Visit Website Today- Blue Diamond is ...

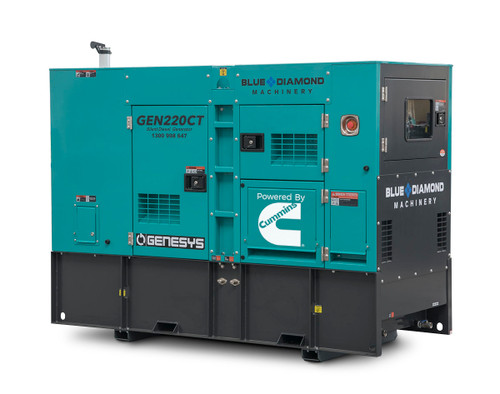

220 KVA Diesel Generator- 3 Phase- 415V- Cummins Engine

Blue Diamond 200 KVA diesel generator is cost-effective, efficient and robust unit you can buy for your power needs. Cummins engine is a 6 cylinder diesel turbo ensuring the highest quality and optimum performance for stationary standby and prime power duty operations. Fully enclosed sets with very compact design, water cooled- so will run in hot conditions, Super Quiet-fully enclosed sound proof canopy, remote start and an automatic transfer switch plug.

This 220 KVA Cummins generator provides the added benefit of featuring true three phase output and for a multitude of three phase appliances. This means you can connect single phase and three phase appliances to the one generator- perfect for both 240V and 415V appliances. Suited for larger loads found in job sites, industrial machinery, commercial or farming. Or as standby/backup generator for office and commercial buildings or entire job site. With an estimated run time of 36 to 48  hours.

Blue Diamond’s range of Cummins Powered Diesel Generators provide heavy duty and reliable power for a range of industrial applications and are backed by a generous 2 year – 1000 hour warranty for your piece of mind.

View the Spec Sheet (.pdf)

Diesel Generator Key Features

  • Prime kVa: 200
  • Model GEN220CT
  • Standby kVa: 220
  • Prime kW: 160
  • Standby kW: 176
  • Power Factor: 0.8
  • Amps: 278A
  • Outlets: Optional Extra (Recessed)
  • Four stroke, water cooled
  • Direct injection fuel system
  • Engine: CUMMINS,
  • Model: 6CTAA8.3-G2
  • Aspiration and cooling: TURBOCHARGED
  • Number of Cylinders and build: 6 - INLINE
  • Engine speed: 1500 RPM
  • Fuel Tank: 1000L
  • Double Bunded Fuel Tank
  • Fuel Consumption 100% load: 42 L/H
  • 24 HOURS
  • AP MRS 16 Controller
  • Genuine Stamford Alternator
  • Insulation system: CLASS H
  • Standard temp rise: 125 - 163 DEG C CONTINUOUS
  • Insulated canopy to reduce noise
  • Enclosed Silenced Canopy with Fork Points
  • Fork point in base
  • ABB Breakers
  • Remote Start ATS Plug
  • Thermally insulated engine exhaust system
  • Noise Level: 65 dB (A) @ 7M
  • Recommended oil; 15W40
  • Dimensions: 350cm x 113cm x 209cm
  • Weight: 2950kg

Optional Extras

Automatic Transfer Switch ATS- can be attached to your diesel generator and allows for automatic switching from your mains power to your standby/backup generator supply.


Gain peace of mind knowing your Cummins Powered Diesel Generator is backed by our Generous 2 year – 1000 hour warranty. We offer 24/7 Australia wide support on all our Cummins diesel generator models, with service agents throughout Perth, Melbourne, Brisbane, Adelaide, Sydney.


We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Perth or Melbourne.

Contact Us

It's important to ensure you select the right generator for your needs. So if you have any questions or need some help please do not hesitate to call us on 1300 998 647
