110 KVA Diesel Generator 3 Phase 415V - Cummins Powered

Cummins
#180013
$23,500 $25,400

30 days non ecommerce product

30 days moneyback guarantee.
100% Australian Owned & Operated

Pin It
  • Cummins Stamfo...
    http://www.bluedm.com.au Blue Diamond is Australia's leading ...

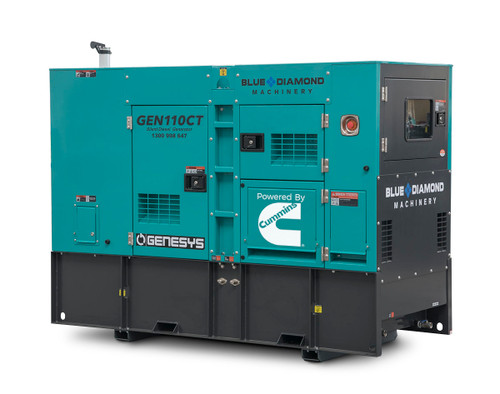

110 KVA Diesel Generator- 3 Phase- 415V- Cummins Engine

Blue Diamond 110 KVA diesel generator is cost-effective, efficient and robust unit you can buy for your power needs. Cummins engine is a 6 cylinder diesel turbo ensuring the highest quality and optimum performance for stationary standby and prime power duty operations. Fully enclosed sets with very compact design, water cooled- so will run in hot conditions, Super Quiet-fully enclosed sound proof canopy, remote start and an automatic transfer switch plug.

This 110 KVA generator provides the added benefit of featuring true three phase output and for a multitude of three phase appliances. This means you can connect single phase and three phase appliances to the one generator- perfect for both 240V and 415V appliances. Suited for larger loads found in job sites, industrial machinery, commercial or farming. Or as standby/backup generator for office and commercial buildings or entire job site. With a run time of 25 hours continuously at prime load.

View the Spec Sheet (.pdf)

Generator Key Features

  •     Genuine Stamford Alternator
  •     Model GEN110CT
  •     Enclosed Silenced Canopy with Fork Points
  •     Upgraded too ComAP MRS 16 Controller
  •     Upgraded too ABB Breakers
  •     Upgraded too Double Bunded Fuel Tank
  •     Australian Compliant Wiring and M.E.N link
  •     Pricing Includes Commisioning and Pre Delivery run in
  •     remote Start and ATS Plug
  •     Prime kVa: 100
  •     Standby kVa: 110
  •     Prime kW: 80
  •     Standby kW: 88
  •     Power Factor: 0.8
  •     Amps: 139A
  •     Voltage: 415 V
  •     Alternator: STAMFORD
  •     Number of phase: 3
  •     Make and model: CUMMINS 6BT5.9-G2
  •     Number of cylinder: 6
  •     Type: VERTICAL IN-LINE FOUR
  •     Speed: 1500 RPM
  •     Fuel tank: 480 LITRES
  •     Fuel consumption: 20 LITRES PER HOUR
  •     Estimated run time: 24 HOUR (75% LOAD)
  •     Bunded fuel tank: YES
  •     Emergency stop: YES
  •     Battery isolator: YES
  •     Australian standards: YES
  •     Fully enclosed sound proof canopy: YES
  •     Outlets: 3 x 15 AMP 240V OUTLETS, OUTLET, 1 X 32 AMP OUTLETS
  •     Dimensions: 2900MM L X 1130MM W X 1800MM H
  •     Weight: 2300 KG
  •     Recommended oil; 15W40

Optional Extras

  • Automatic Transfer Switch ATS- can be attached to your diesel generator and allows for automatic switching from your mains power to your standby/backup generator supply.

Warranty

  • Covered by 12 MONTH 1000 Hour Cummins Australia Warranty. Options for extended warranty. We have full time mechanics providing support and we carry all spare parts.

Delivery

  • We can ship via weight just enter your postcode when your checking out- Australia Wide. Alternatively you can specify your own freight company
  • Or Pick up from our Perth Office

Contact Us

It's important to ensure you select the right generator for your needs. So if you have any questions or need some help please do not hesitate to call us on 1300 998 647
